What is the intermittent syndrome?
Apparently it’s caused by erratic electronic signals sent from the
air-flow-meter ( AFM ) to the electronic control unit ( ECU ),
causing the ecu to shut down or go into default.
It goes like this: You are on a longer trip, the wasserboxer has
been humming along for several hours and runs really good.
Then all of a sudden, out-of-the-blue, the engine cuts out.
The vanagon lurches, looses power, and starts bucking.
You pull over and shut it off. A little later, you restart the motor,
and it runs just fine. Sometimes this might not happen again
for a long time, or if you are not so lucky, the vanagon might start
this syndrome all over again after only a few minutes of driving.
Sometimes the cutting out is very slight, barely noticeable.
My ‘90 westy did this on our last trip in Death Valley, and once
before on a previous trip.
There can be many possible causes for temperamental vanagon behavior:
corroded grounds, defective wiring harness, worn air flow meter,
vacuum leak, bad spark plug wires, loose contact by the fuel pump,
bad fuel pump relay, defective ECU. (I’m sure I forgot a few.)
When you checked or replaced all those gizmos, and the vanagon
continues to exhibit the intermittent syndrome, you can try the following.
The Volkswagen dealer sells a short wire harness, especially
designed to cure this intermittent vanagon behavior.
 |
The harness is installed between the AFM and the existing cable.
The price for the VW dealer harness is around $166.
The less costly, but as effective solution, is to solder a tantalum
capacitor
between terminals 2 and 4 in the cable connecting the airflow meter.
Some vanagon owners installed the capacitor under the rubber boot that
protects the plug on the AFM.
I decided for different reasons to install the capacitor inside the
air-flow-meter on my ‘90 vanagon.
The "syndrome" has not reappeared since this fix.
I used a 15 volt 22 microfarrad tantalum capacitor.Part Nr. 15 TA 22 cap price $2.80
You can also use a 25 volt 22 microfarrad capacitor, if available.
These are commonly available at electronic supply stores.
Don’t use a less expensive electrolytic capacitor.
Apparently the capacitor helps to even out the signal, to prevent the
ECU from going into “default mode”. Sounds simple enough. |
 |

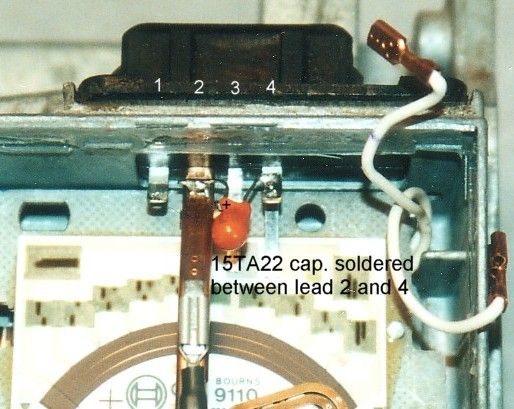

The two ground wires (white) removed and the capacitor
soldered to the leads going to connectors 2 and 4 on the wiring
harness. The plus (+) of the capacitor is soldered to 2, and the minus
(-) side of the
capacitor is soldered to 4. Make sure to mark the position of the two
wires before removing, so they don’t get mixed up.
