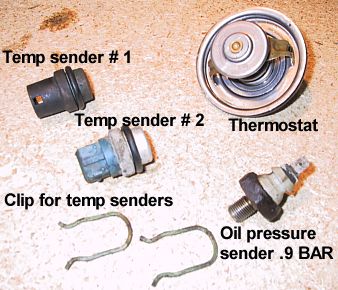

View of the thermostat
( 87° ) & thermosat housing and the
infamous temp. sender # 2 (BLUE)
The Westy trouble maker's..., change those
damn parts, PERIOD. (Those are 30% of the van problems)
The Blue temp sender #2
(on the left side of the thermostat housing) is for the ECU or fuel
injection mixture, the black temp sender #1 is on the front of the
thermostat housing (90deg of the blue one) and this one is only for
the front temp gauge in the dash, The red coolant level light in the
dash (behind engine temperature gauge) is directly attach to the
gauge (on top) on the expansion tank. For now I did not find any
indication about the location of the so call buzzer for the oil
pressure sender on the Canadian version.
