Reseal - replace the fixed leaky pushrod
tube by an extensible one (Click on any
picture for a bigger size one)
|

Remove the valve cover, pull down the clamp (red arrow), remove all 4 screws
(yellow arrow)
|

Have fun! |

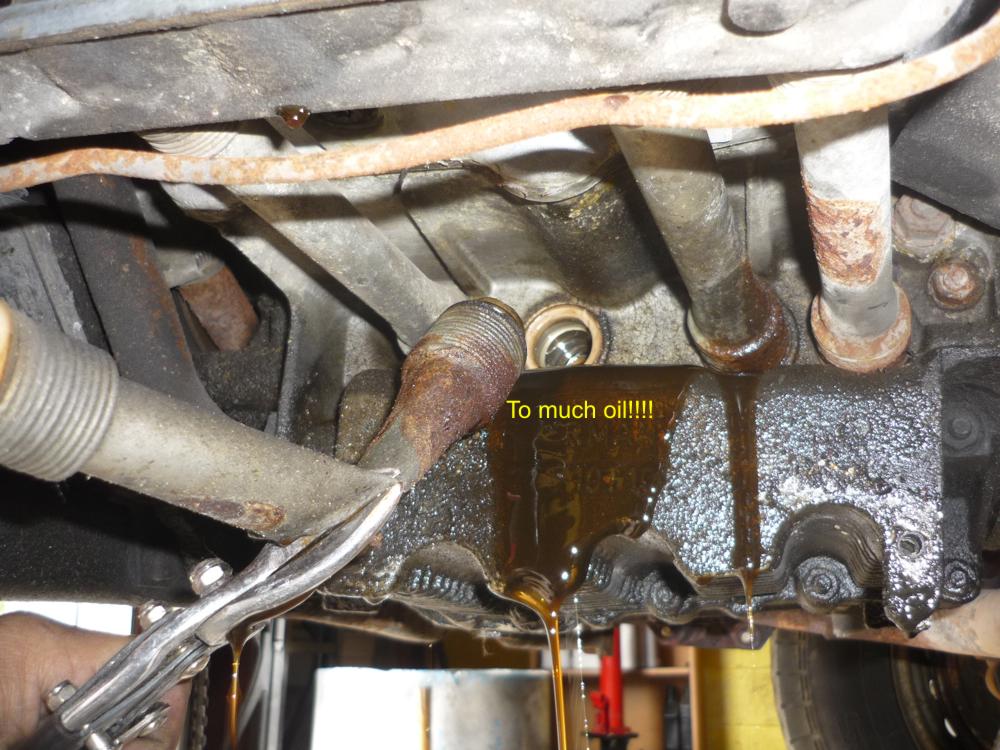

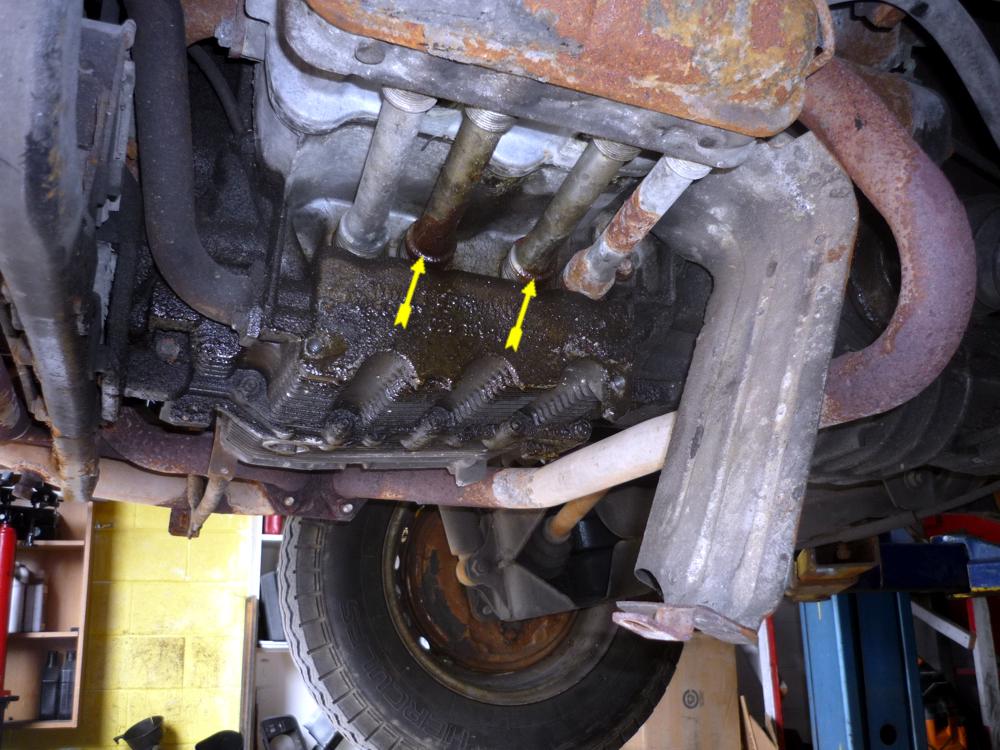

Old leaky tube. |
 |

Remove the rocker, 2 13mm screw.
|
 |

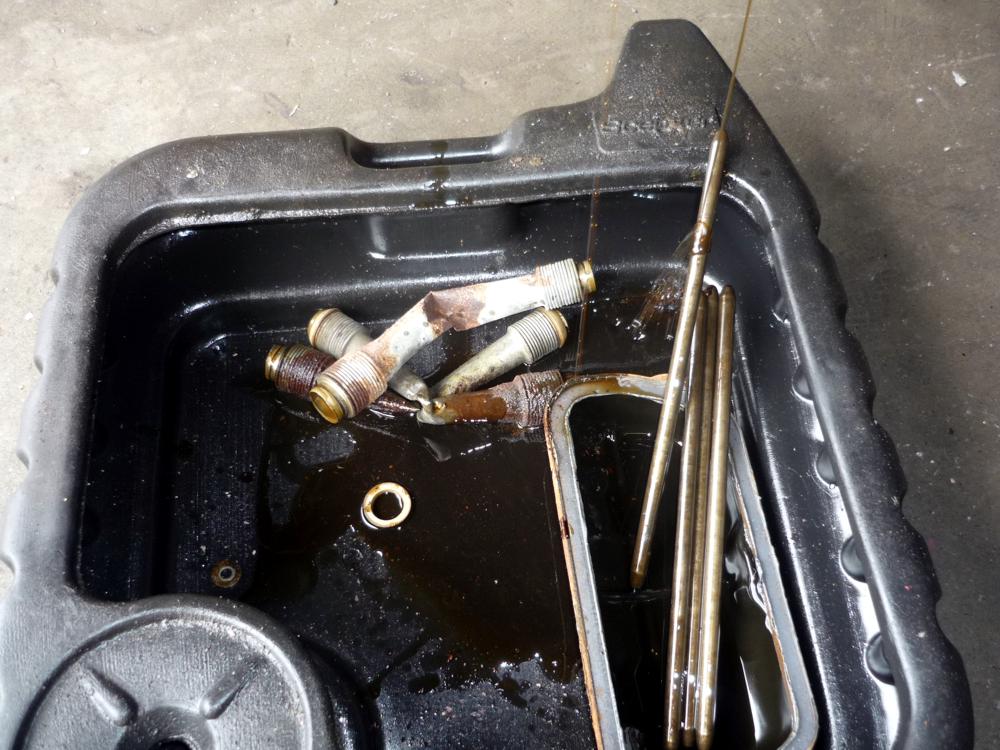

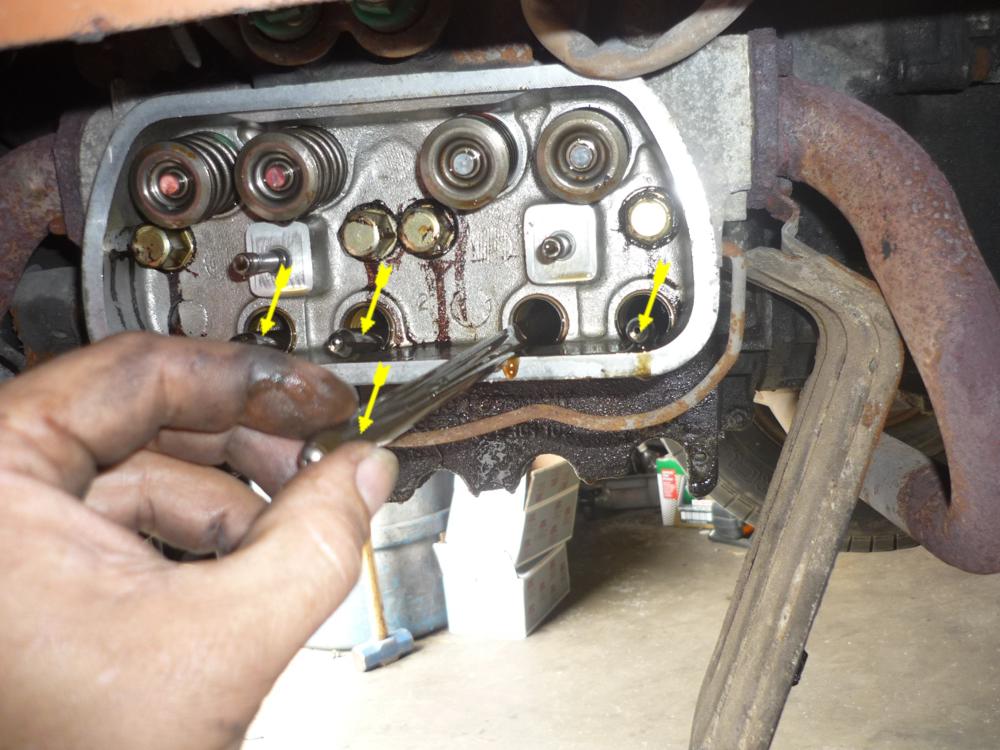

Remove pushrod |

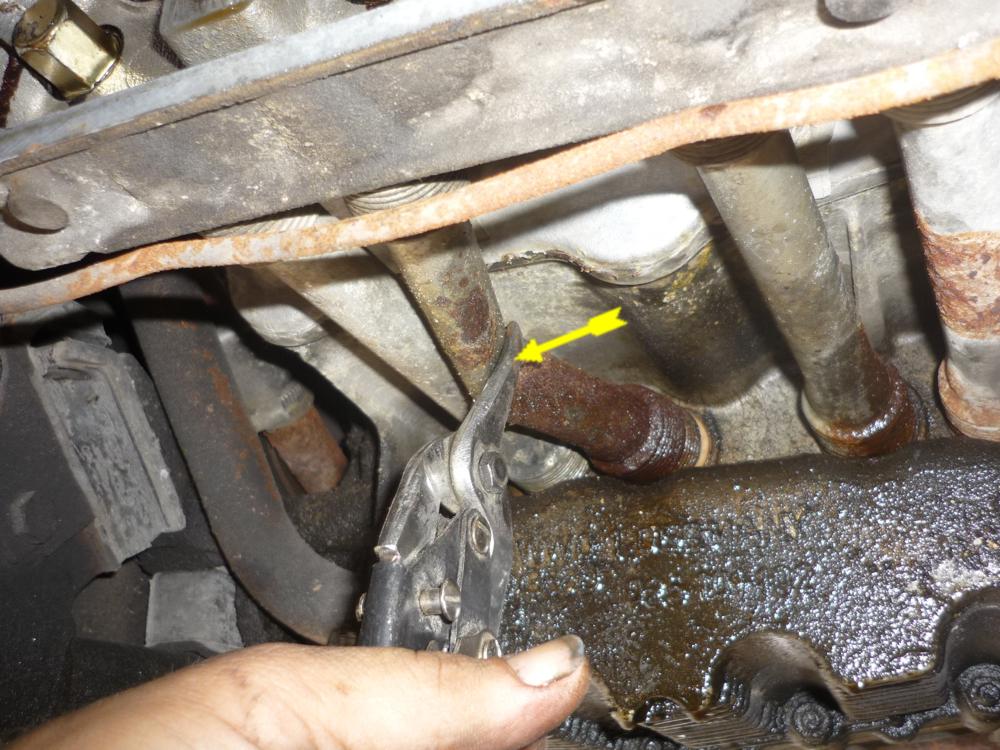

Cut the leaky one, pull out. |
 |
 |

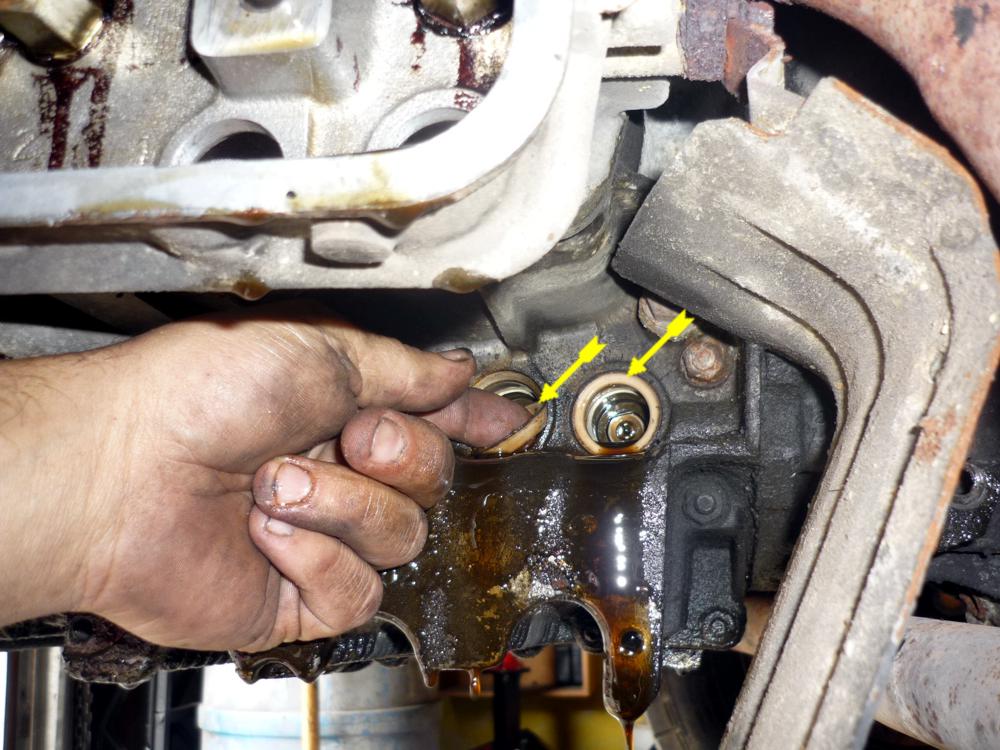

Remove old seal
|
 |

Grease the O-ring |

Add some Locktite 518 or some similar stuff.
|

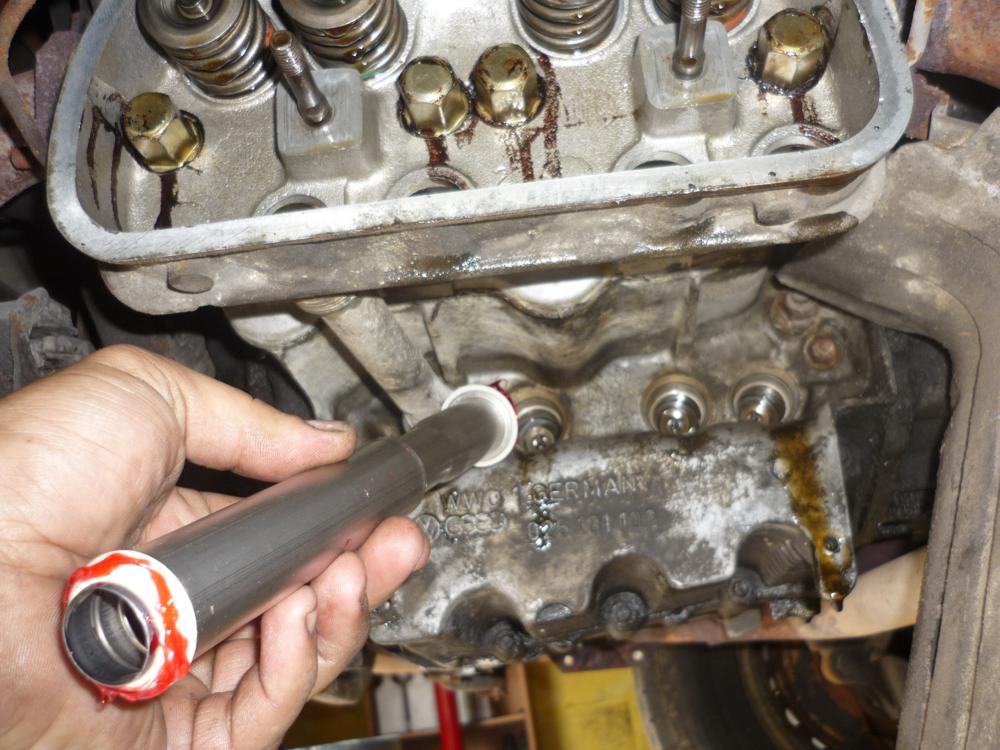

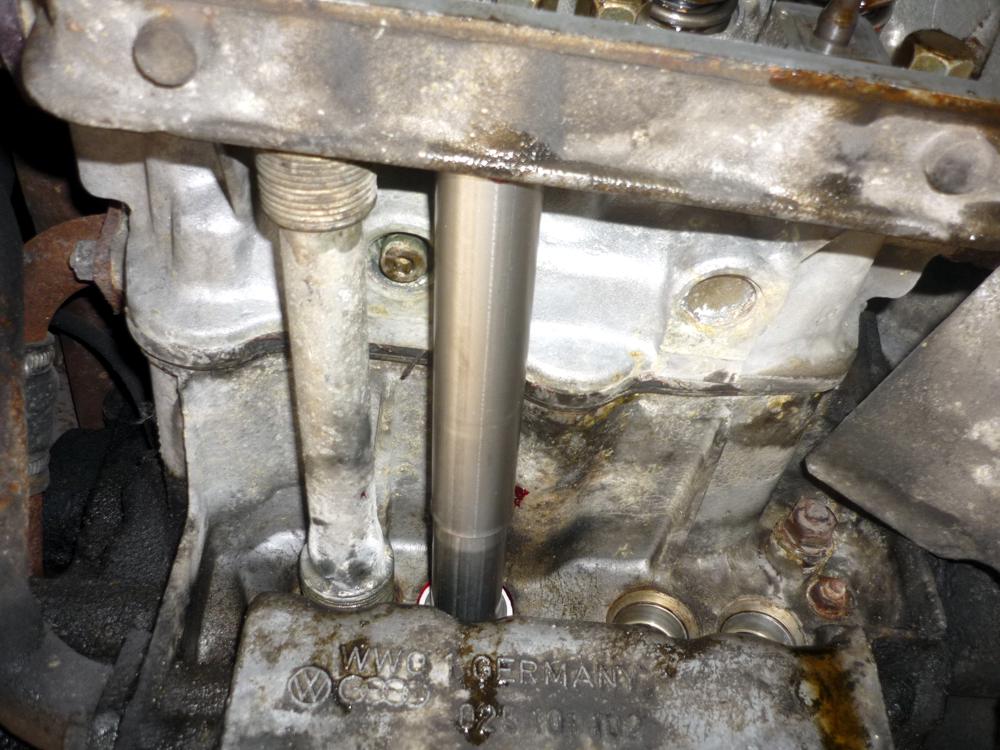

Insert the new EX tube, push hard on it. |
 |
 |

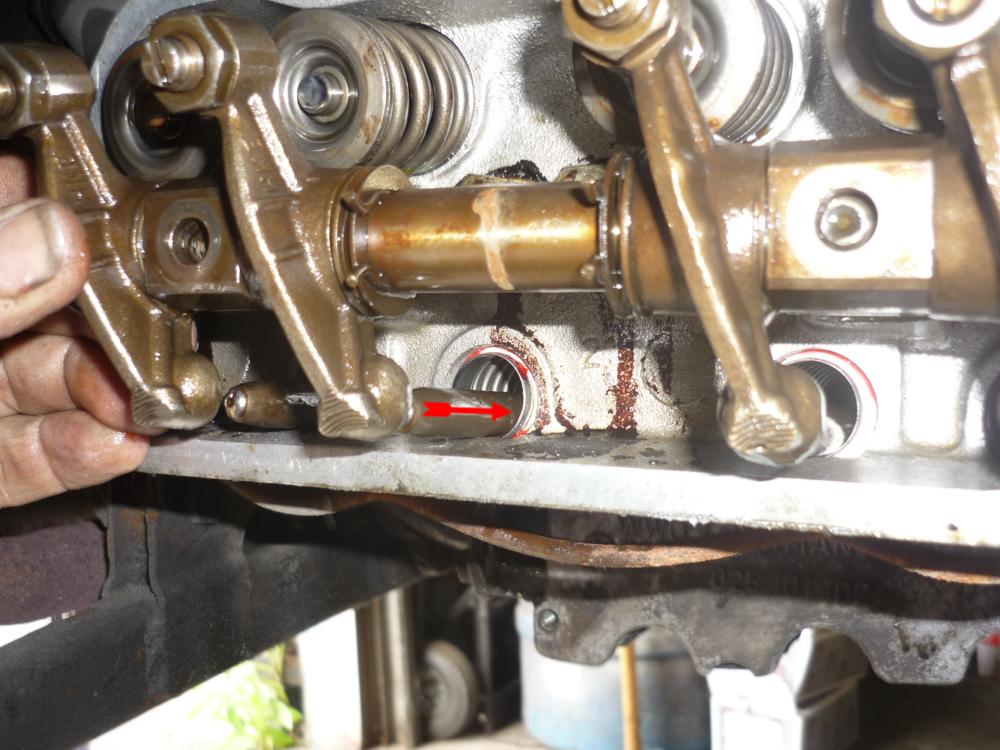

Put back the rocker ass. and MAKE SURE THE LOWER PUSHROD IS WELL ALIGN IN
THE CENTER OF EACH LIFTER. Push the bottom part of each rocker. |

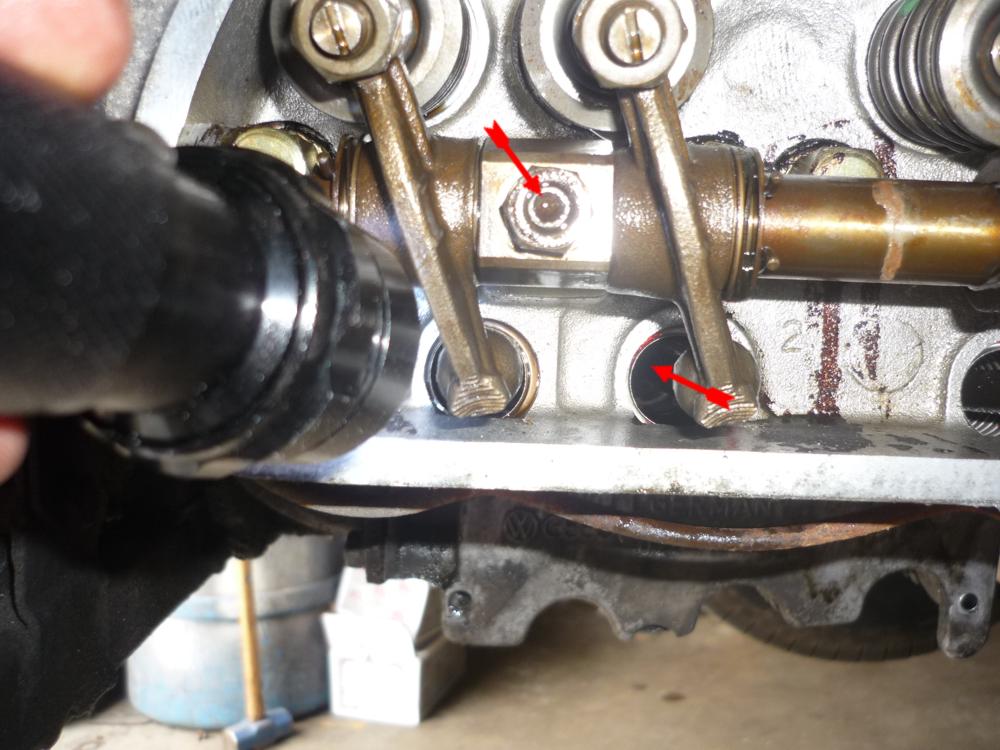

Use a flashlight to make sure they are well align. Check all 4. When done,
put the valve cover back and tin. |
|
|
